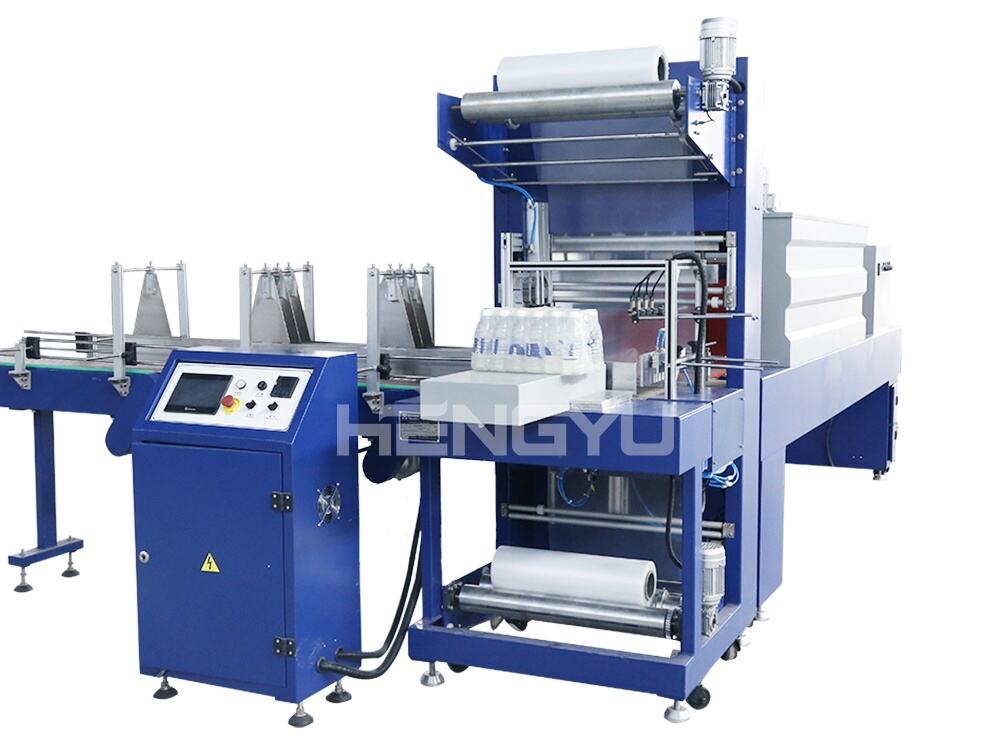

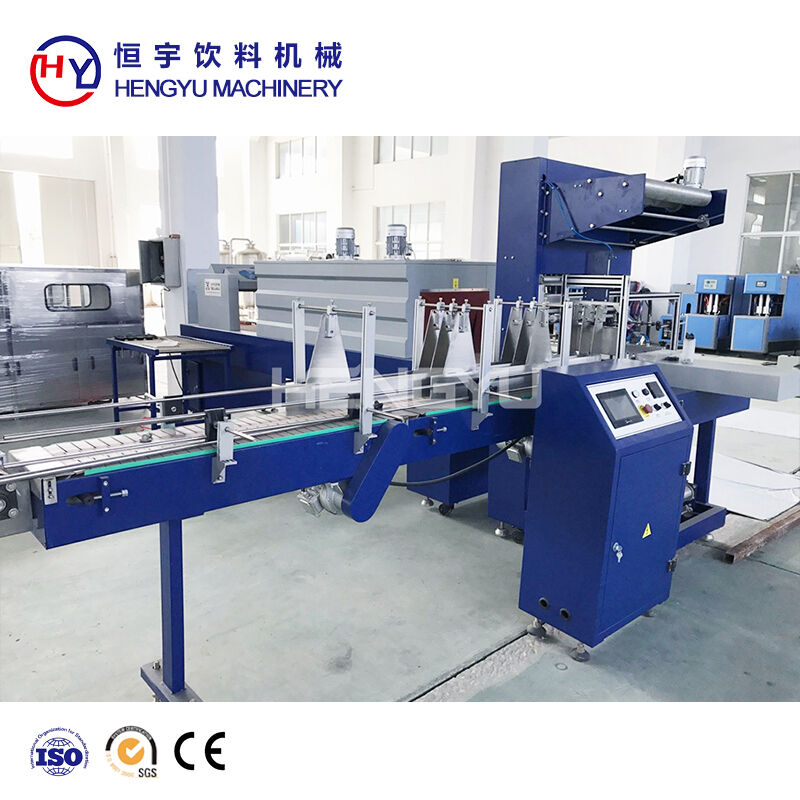

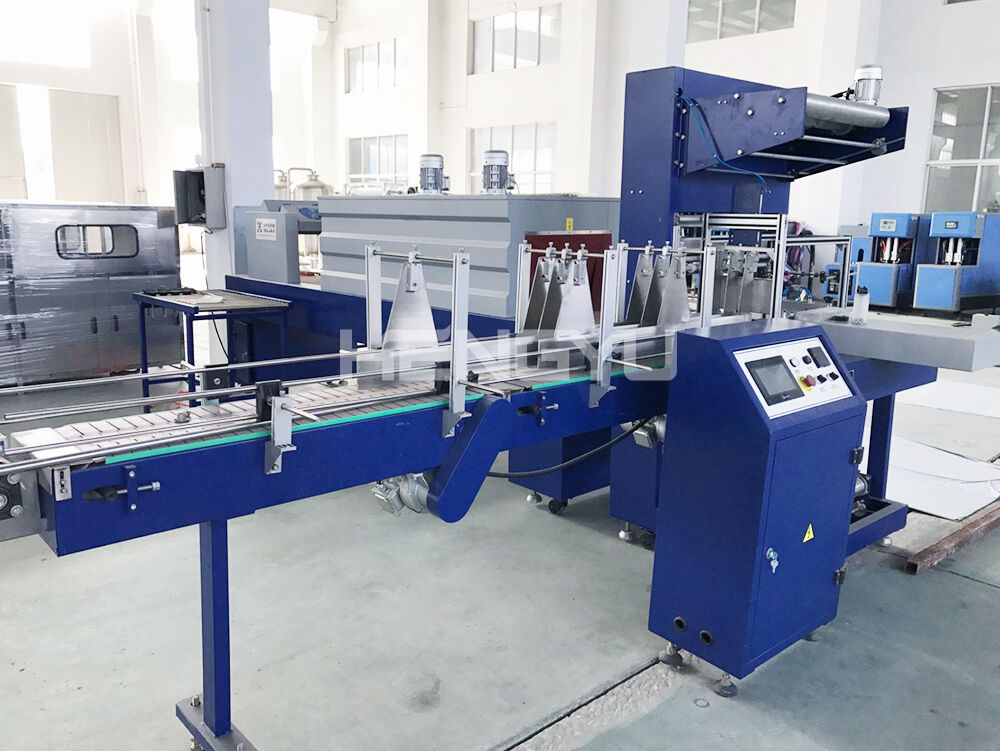

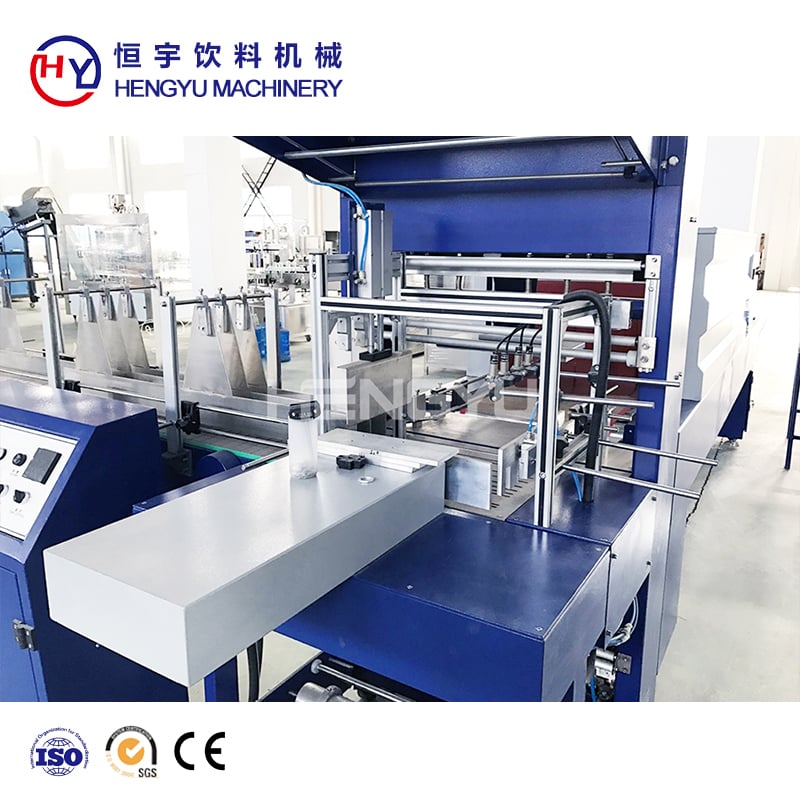

L-type Heat Shrink Film Packaging Machine

L-type heat shrink film packaging machine for beer, beverage, water, juice and dairy. Automates feeding, wrapping, sealing/cutting, shrinking and cooling. Features constant-temperature sealing, quick cooling, PLC control and frequency-conveyor for stable, low-waste operation. Uniform heating, energy saving and easy bottle-size changeover.

Product Capacity:8-10 bags/minute

1.Specially designed for packaging production line of beer, beverage,pure water,fruit juice,dairy products,etc.

2.With full automatic functions of bottle transfer and arrange, membrane packing ,sealing and cut,shrinkage,cooling and shaping,etc.

3.Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.

4.The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition.

5.Adopt with PLC automatic program circulation control with stable and reliable performance.

6.The original imported guide bar cylinder guarantee correct operation and durable.

7.The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.

8.All the transfer system is controlled by frequency changing devices With stable and smooth transfer speed.

9.Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.

10.3 layers of heat insulation treatment with good insulating property,quick temperature rise and energy saving.

11.The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported.

12.It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.

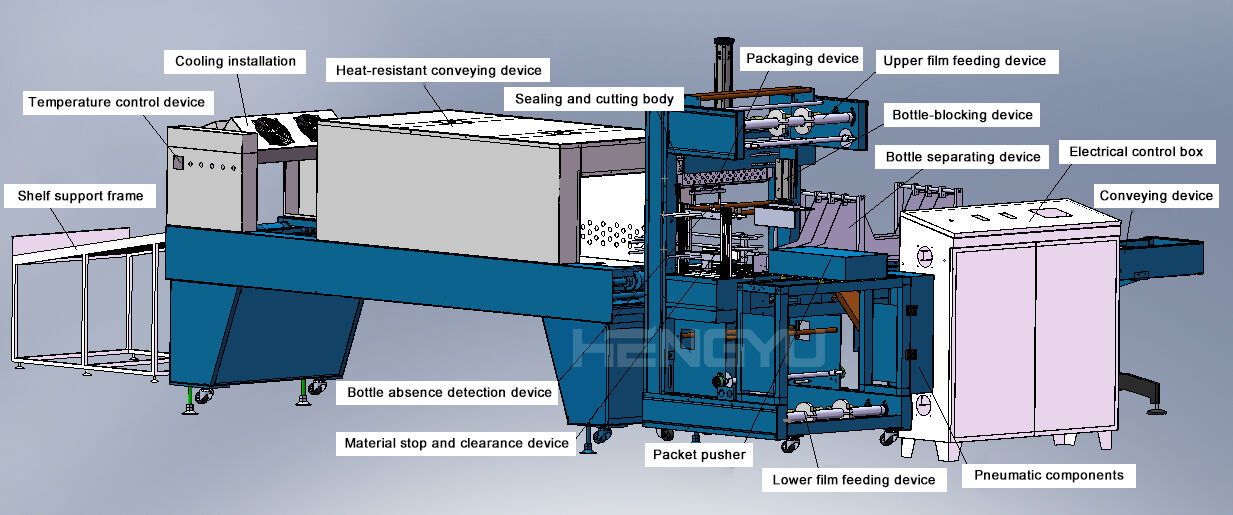

Equipment Composition

Conveying Device: Transports items to be packaged.

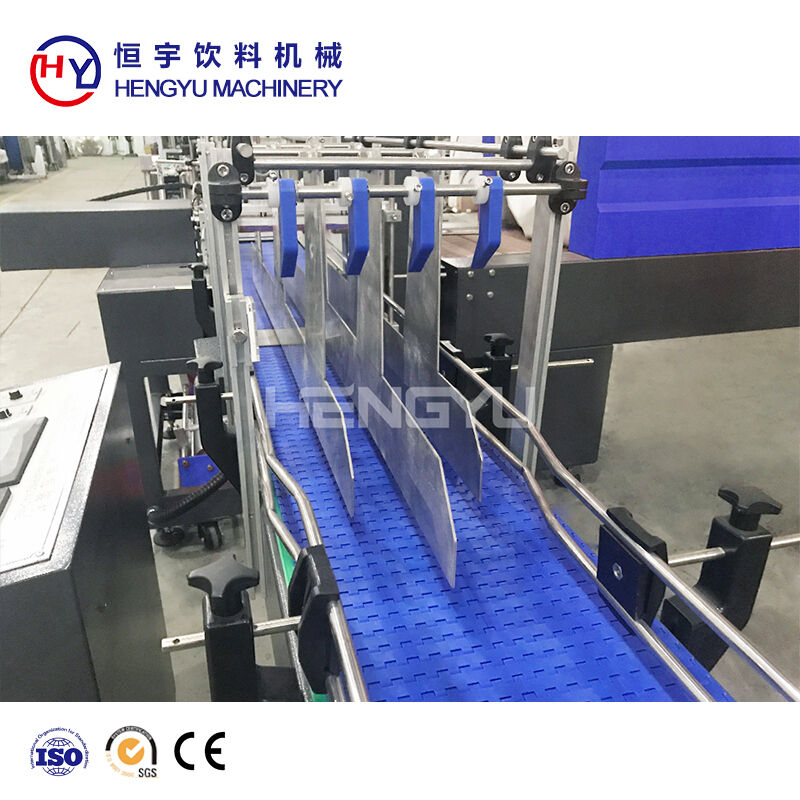

Bottle Separation and Stopping Device: Separates and controls the travel of packaged items.

Material Clearance Device: Prevents excessive pressure on packaged items, providing a buffer space.

Bottle Separator: Separates packaged bottles from waiting bottles.

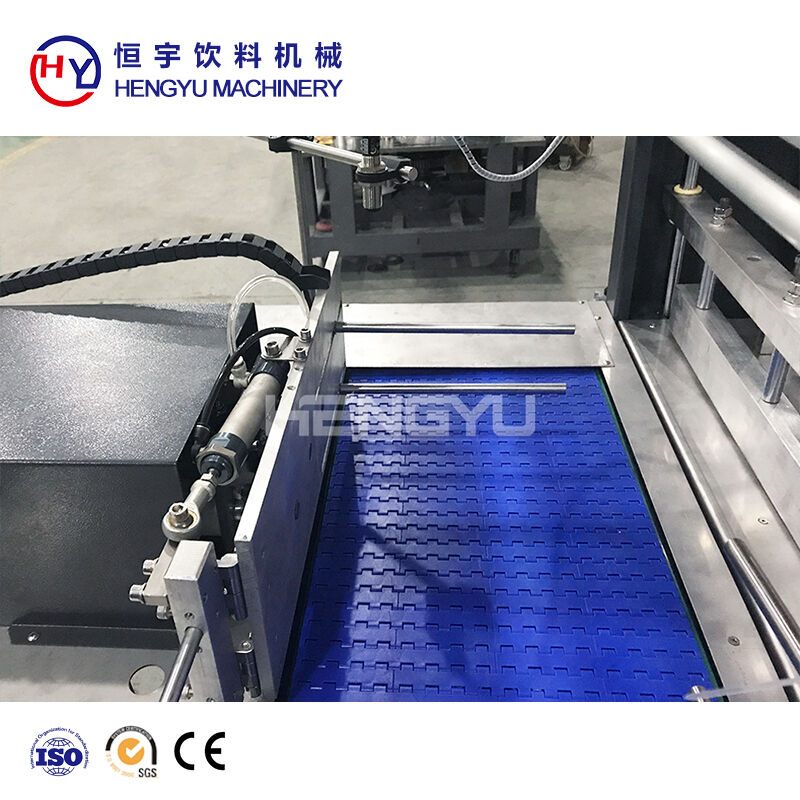

Bottle Pusher: Pushes items to the sealing and cutting station.

Bottle Pressing Mechanism: Prevents bottle tipping and ensures complete sealing and cutting.

Upper and Lower Film Feeding Device: Transports packaging film.

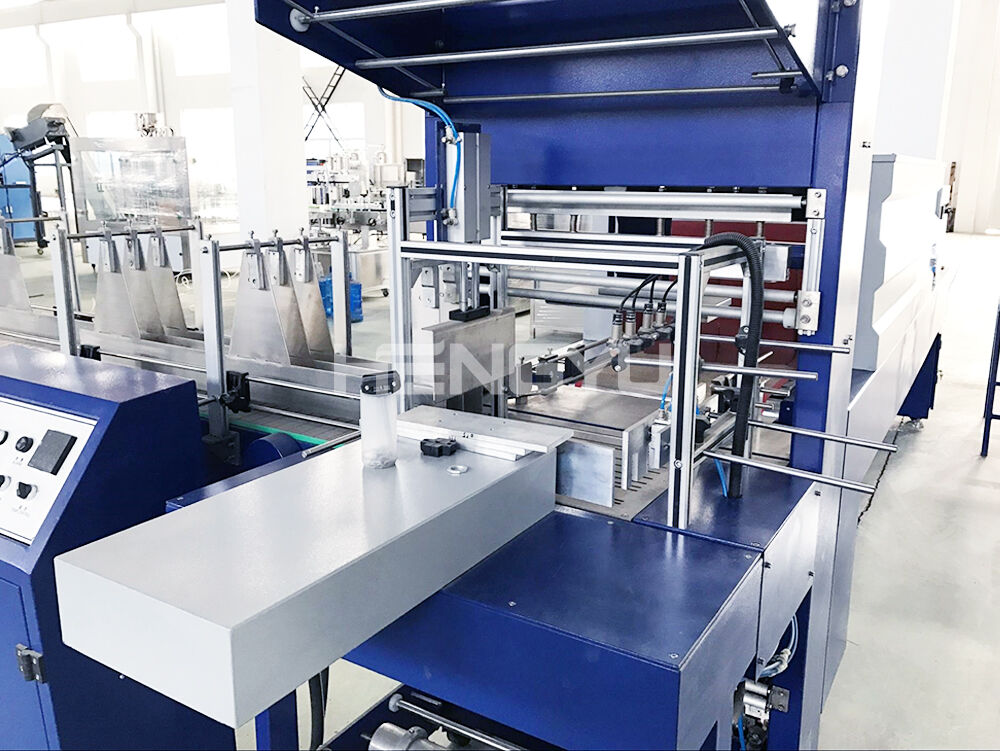

Sealing and Cutting Body : Seals and cuts the film to achieve the sealing process.

Hot Air Circulation Device: Performs the heat shrink function.

High-Temperature Resistant Conveying Mechanism:

Smoothly transports finished products at high temperatures and performs the heat shrink function.

Shelf: Allows for short-term storage of finished products.

Cooling Device: Cools finished products to prevent breakage or scattering during transfer to the required location.

Fault Alarm Device: Alerts operators to troubleshoot promptly.

PLC programmable control system: Automatic control.

Main electrical control box: Centralized control of the machine.

1. Installation & debugging
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debugging and testing production at the same time to make the equipment reach the rated producing capacity of the line.

2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

Q1: Are you a trading company or a manufacturer?
A1: We are the direct manufacturer. This allows us to offer factory-direct pricing while maintaining excellent quality standards.Our experienced Engineering Team has over 25 years of expertise. We welcome you to arrange a factory tour!

Q2: How can I be assured of your machine's quality?
A2: For your confidence, we provide a video demonstration of your specific machine undergoing full operational testing prior to shipment. We also encourage you to send us your sample bottles for a trial run on our equipment.

Q3: What warranty and support do you provide with your machines?
A3: We stand behind the quality of our machines with a comprehensive 12-month warranty. Beyond this, we are committed to providing lifelong technical support to ensure your long-term operational success.

Q4: What is the lead time after payment?
A4: The delivery time frame depends on the specific machine model and configuration you have finalized. We will provide a confirmed schedule upon order confirmation.

Q5: How will the machine be installed upon arrival?
A5: To ensure seamless setup and operation, we will dispatch our qualified engineers to your factory. They will handle the complete installation and provide comprehensive training for your staff on machine operation.

Q6: What about spare parts availability?
A6: Following the finalization of your order, we will furnish you with a detailed spare parts list for your reference and future needs. Essential parts are readily available to minimize downtime.
