The 5 Gallon Water Filling Machine is an automatic industrial system for 5-gallon bottles, combining barrel washing, filling, and capping. It offers high efficiency, precise control, and durable performance, compatible with PC, PET, and other standard materials.
Description

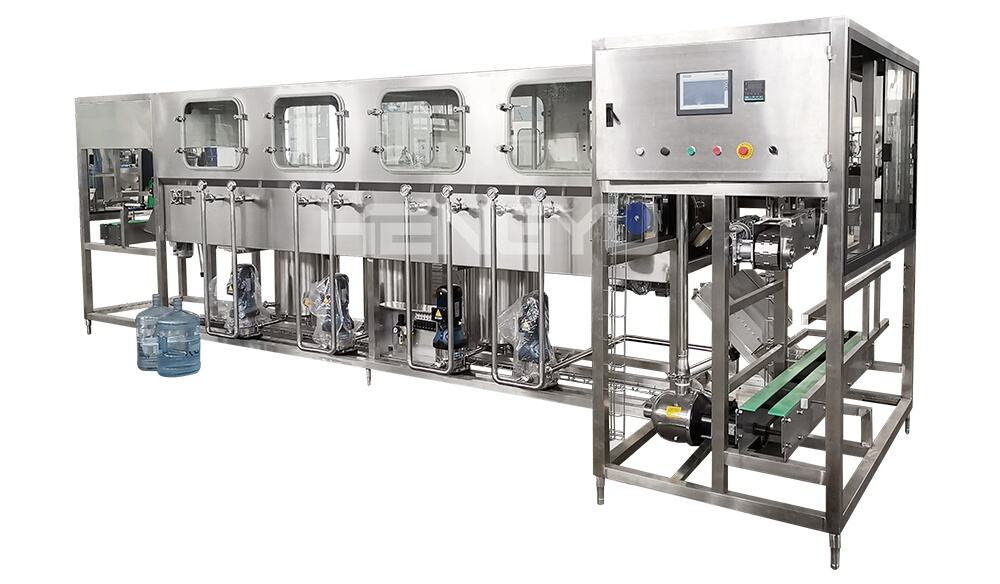

The 5 Gallon Water Filling Machine is an industrial-grade automatic equipment for large-volume drinking water packaging, excelling in efficiency, durability and precision control. It integrates 3-in-1 processes of barrel washing, filling and capping, and is suitable for 5-gallon containers made of PC, PET or other common materials.
Product Capacity:300BPH@5 Gallon
Product Features
(1) QGF series automatic production line is specialized for production of 3-5 Gallon barrel.
(2) The machine consists of washing, filling and sealing in one.
(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of washing sterilization.The disinfectant is recyclable.
(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation device to ensure the sanitation of cap.
(5) Washing, disinfection, filling, gland, counting and discharging is automatic.
(6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.
(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure, small occupation of land and high automation.
Detailed Images

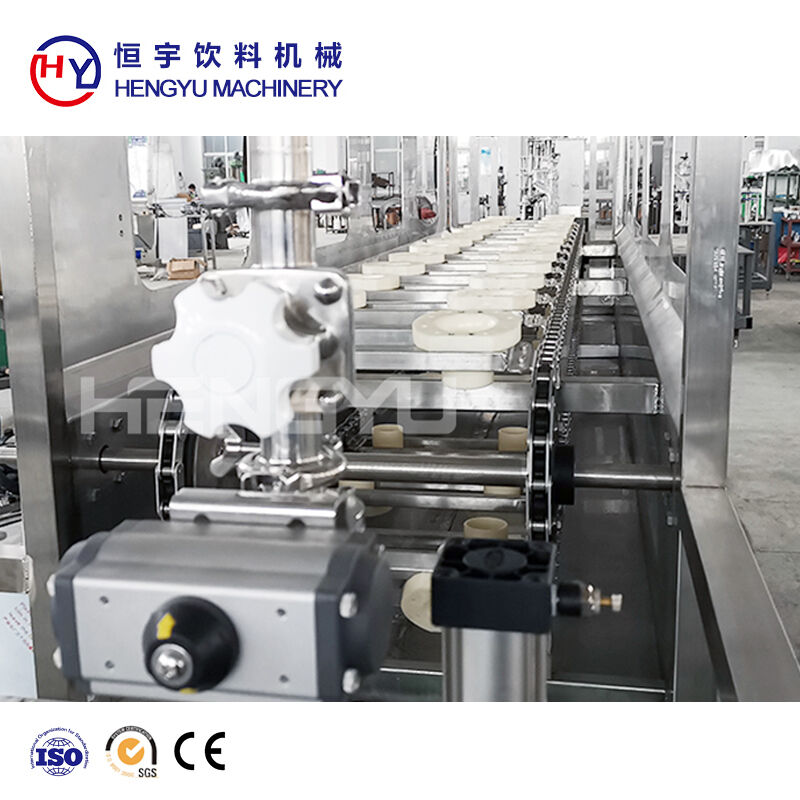

1.Washing Part
1) High pressure water with inside rinsing head to make sure fully cleaning with no dead angle.
2) Up to 14 rinsing stations which can meet various hygiene standards and rinsing process.
3) Independent cycle recovery system to prevent mixing of cleaning fluids.

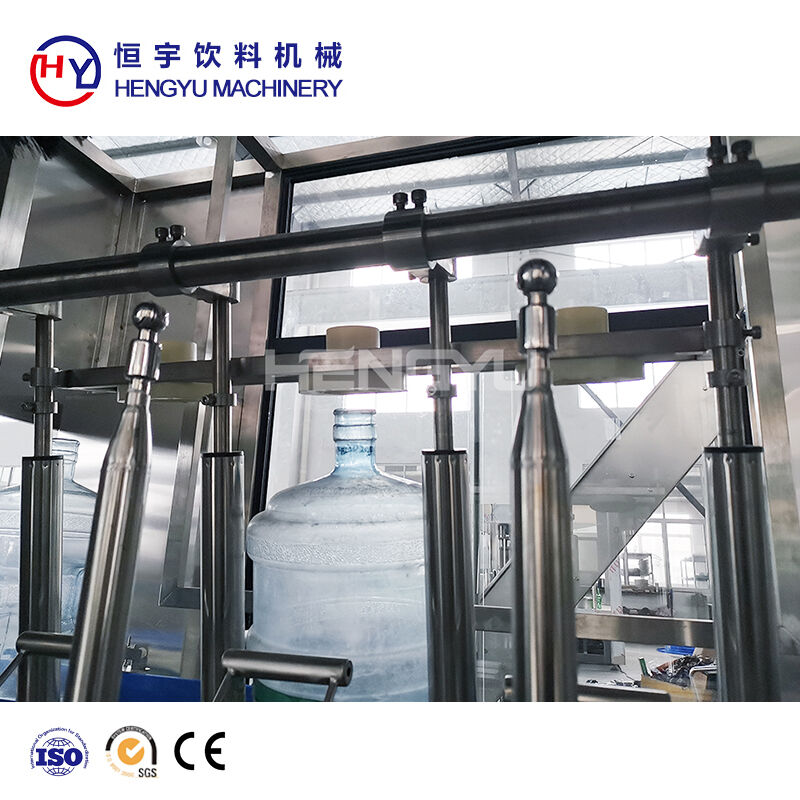

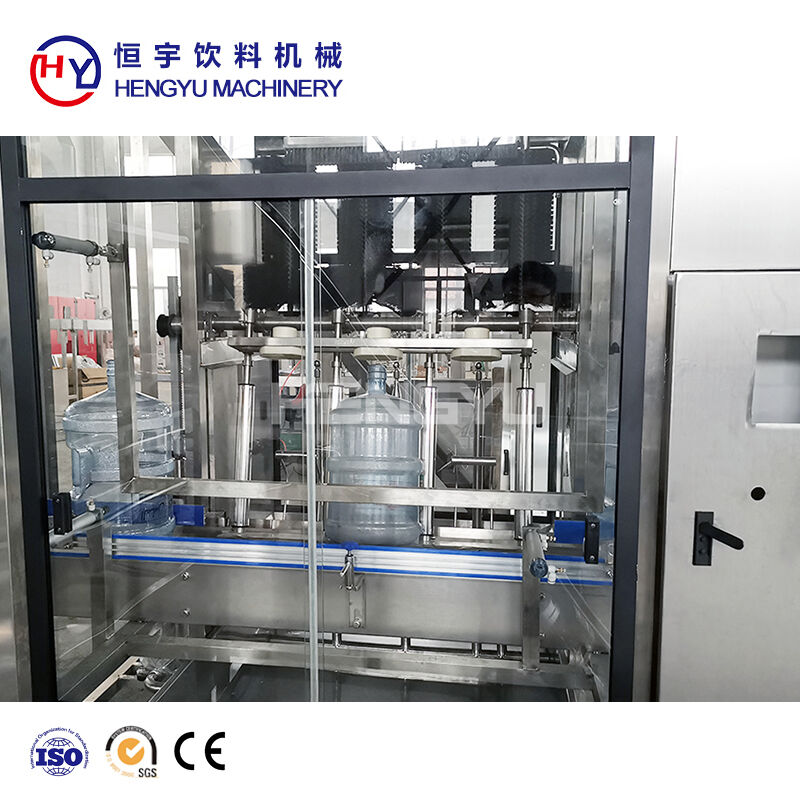

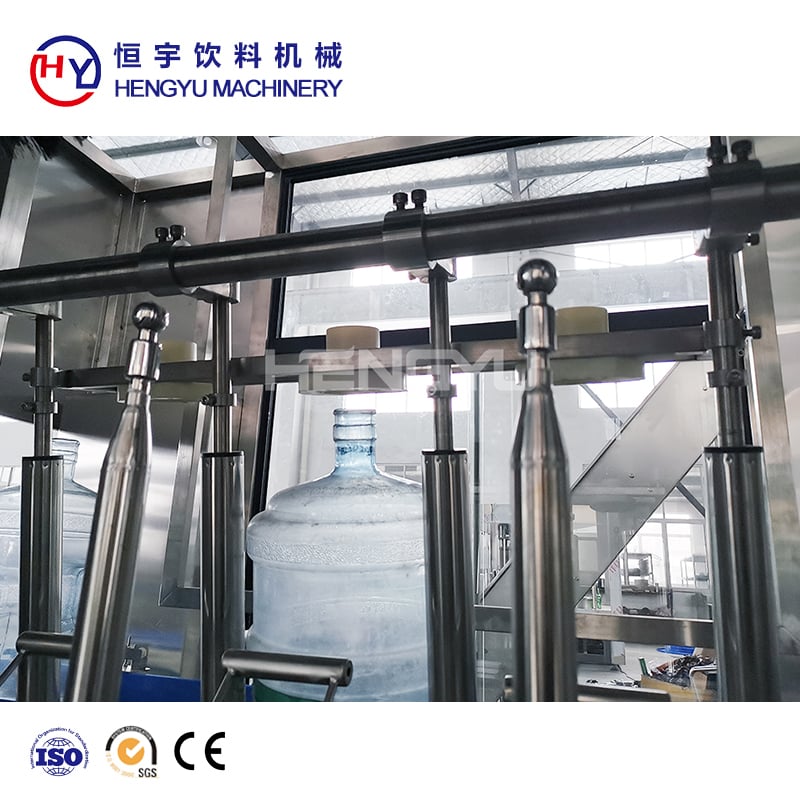

2.Filling Part
1) Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2) Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

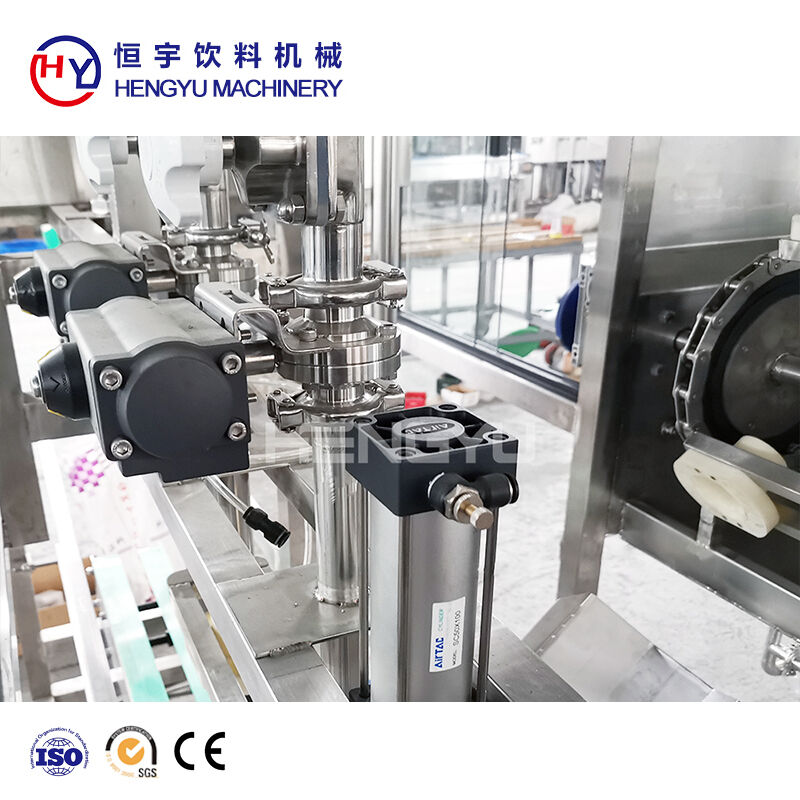

3.Capping Part
1) Liquid level difference is controlled in 1cm.
2) Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3) Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
Turnkey Solution
Professional Creation of the Future:
Your Turnkey Project Partner for the Filling Machine Factory
We focus on providing highly integrated, intelligent and all-inclusive turnkey engineering solutions for filling machine factories to global customers. As experienced industry experts, we have a profound understanding of the complex process and strict standards involved from raw materials to finished product filling. We not only provide core filling equipment, but also integrate planning, design, manufacturing, installation, commissioning, verification
and training, ensuring a seamless transition from blueprint to efficient production in your factory.
Let's join hands and start from "zero" to build a perfect bottling plant!
Service
1. Installation & debugging
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debugging and testing production at the same time to make the equipment reach the rated producing capacity of the line.
2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
Packing & Delivery
Specifications
| Model(QGF) | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 5 | 6 |
| Capacity(BPH) | 150 | 300 | 450 | 600 | 900 | 1200 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(m³/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power(kw) | 1.38 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Dimension(mm) | 2600*650*1600 | 4600*1000*1900 | 4600*1250*2000 | 5500*1500*2000 | 6200*1800*2000 | 6500*2100*2200 |
| Weight(kg) | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are the direct manufacturer. This allows us to offer factory-direct pricing while maintaining excellent quality standards.Our experienced Engineering Team has over 25 years of expertise. We welcome you to arrange a factory tour!
Q2: How can I be assured of your machine's quality?
A2: For your confidence, we provide a video demonstration of your specific machine undergoing full operational testing prior to shipment. We also encourage you to send us your sample bottles for a trial run on our equipment.
Q3: What warranty and support do you provide with your machines?
A3: We stand behind the quality of our machines with a comprehensive 12-month warranty. Beyond this, we are committed to providing
lifelong technical support to ensure your long-term operational success.
Q4: What is the lead time after payment?
A4: The delivery time frame depends on the specific machine model and configuration you have finalized. We will provide a confirmed schedule upon order confirmation.
Q5: How will the machine be installed upon arrival?
A5: To ensure seamless setup and operation, we will dispatch our qualified engineers to your factory. They will handle the complete installation and provide comprehensive training for your staff on machine operation.
Q6: What about spare parts availability?
A6: Following the finalization of your order, we will furnish you with a detailed spare parts list for your reference and future needs. Essential parts are readily available to minimize downtime.
